This cost-effective HD camera system with optical fiber transmission capability meets the high-end TV program production needs of broadcast studios.

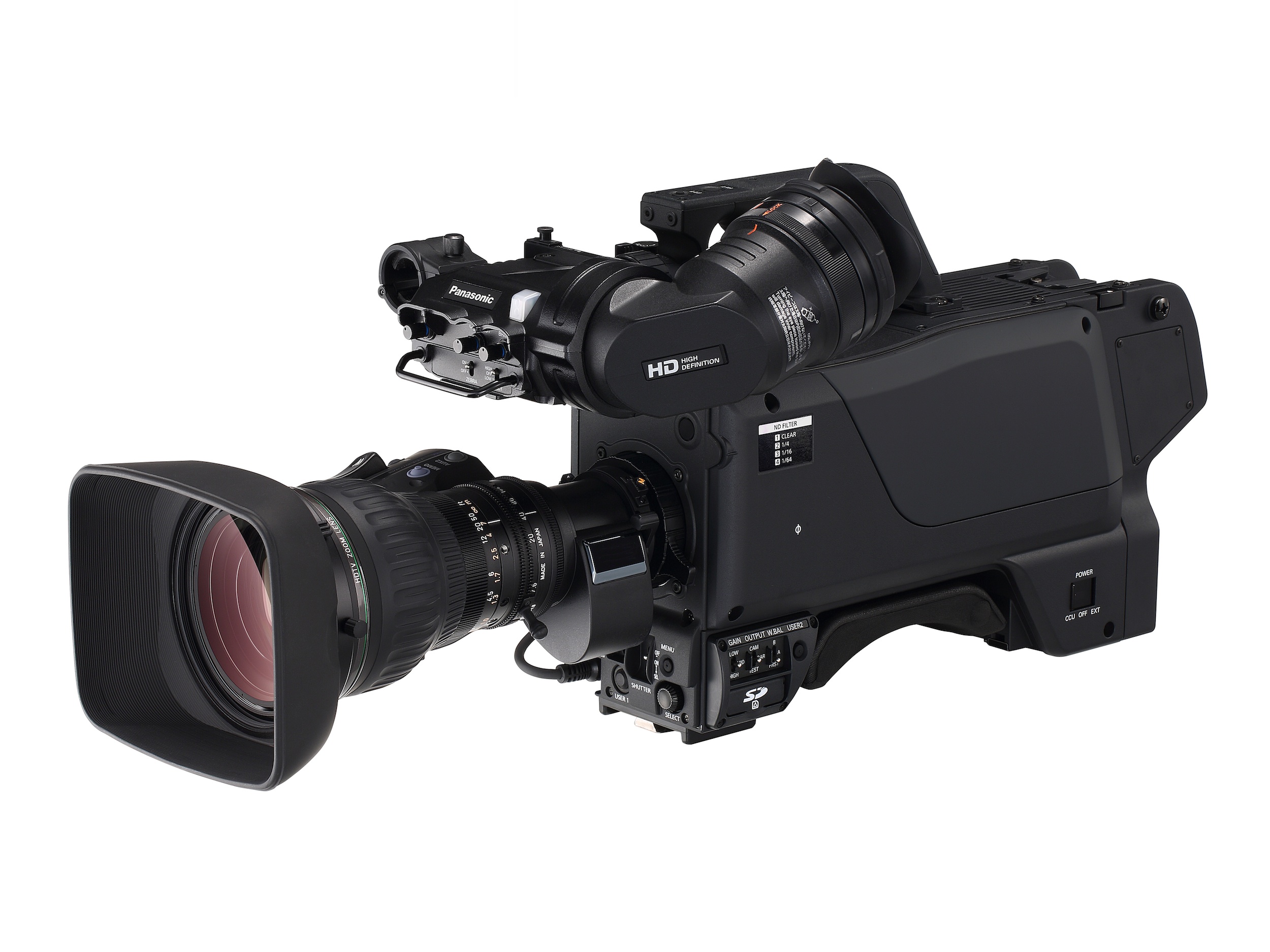

The newly developed AK-HC3800 Studio Handy Camera is equipped with a high-sensitivity, high-quality 2/3-type 2.2-megapixel 3CCD and a new high-precision 16 bit A/D image processing circuit. The advanced digital functions such as Chromatic Aberration Compensation (CAC), Digital Extender, Film Rec Gamma, Dynamic Range Stretch (DRS) and etc. realize high image quality and versatile operations. By using the AK-HC3800 together with the AK-HCU200 Camera Control Unit, AK-HRP200G Remote Operation Panel and AK-HVF70G 17.8 cm (7 inches) LCD Color Viewfinder, an optical fiber transmission studio camera system that achieves high image quality, uncompressed and longdistance transmission, can be configured at a low cost. The camera and camera control unit can be connected for long-distance transmission of video signals over approximately 1,200 m (1,312 yards) when power is supplied from the camera control unit.
The camera control unit and remote operation panel are connected by a dedicated cable. A LAN cable can also be used in the future for an IP connection of these units
